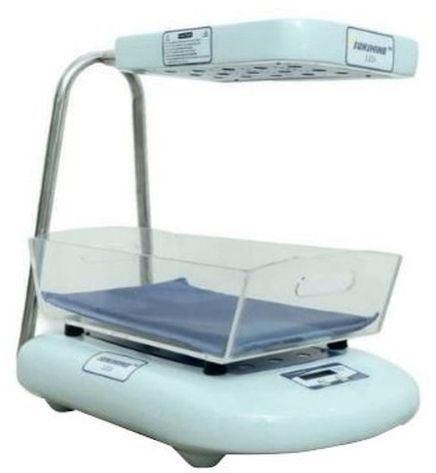

Compact Phototherapy Unit

Product Description

In the new born period i.e birth to one month, jaundice can pose a serious problem, because high level of the bilirubin, can be decomposed to a harmless metabolic which is water soluble, does not cross blood brain barrier and is rapidly excreted in the bile and urine and so does not accumulate. This has been achieved by exposing the infant to bright light (approximately 4.5 micro watts/sq cm/nm) in the range of 420-480 nm wave length. Phototherapy unit has been one of SS TECHNOMED most important focus in the field of neonatology for many years. In order to remove the limitation of CFL tubes, SS TECHNOMED (P) Ltd. has utilized long lasting, durable, more efficient and cost effective LEDs with more than double the flux as against what is radiated from conventional, CFL Tube for jaundice treatment.

Technical Specificiation

Parameter

LED 9-12-24 hi power LEDs (blue) (white LED optional)

Irradiance >42 mw/cm2/nm at 45cm

Light source lifetime minimum 25,000hrs.

Less than 10% change in illumination after 25,000hrs (irradiance)

Wavelength 420-480 nm

Variation in intensity for 6 hours <10%

Effective area 50 cm X 30 cm

BABY BASSINET FEATURES

Clear Collapsible fold down side panels

Baby Tray with Transparent base for Undersurface Phototherapy usage.

Lower Shelf

Movable Castors

Undersurface LED Phototherapy

Same as overhead placed under the bassinet.

Electrical

Dimensions LED Box

Front : 18” (L) x 10” (W) x 3” (H)

Backside : 18” x 8.5” x 3”

Height (adjustable)

Min : 1230 mm, Max : 1600 mm

Length : 800 mm, Width : 720 mm

OPTIONAL:

Luxmeter: Inbuilt lux meter for checking light intensity of the unit by fixing sensor in the unit.

Inbuilt Temp Sensor which switches off the unit when it reaches the set temp. point.
