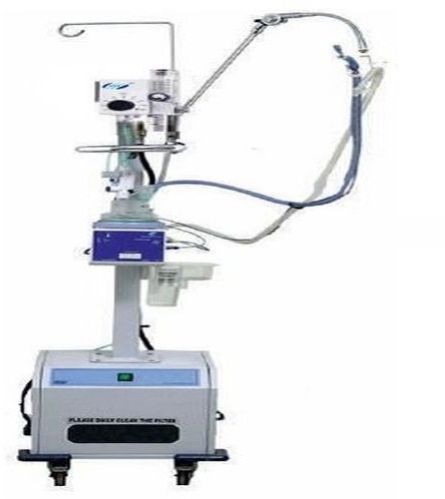

Restohealth 03 Bubble CPAP Machine

The Neonatal Continuous Positive Airway Pressure (Nasal-CPAP) Support System delivers continuous positive airflow through nasal or nasal congestion interfaces to support neonatal breathing.

It is designed for use under spontaneous breathing conditions, where the patient:

• Has a stable respiratory drive

• Maintains an appropriate tidal volume

Throughout the breathing cycle, a controlled level of positive airway pressure is maintained to:

• Prevent airway collapse

• Increase functional residual capacity

• Improve lung compliance

• Enhance oxygenation

In this mode, the ventilator only maintains positive airway pressure and does not provide mechanical ventilation. It is ideal for providing continuous positive pressure ventilation support for newborns with spontaneous breathing.

• Provides safe and controllable oxygen concentration for the baby

• Effectively maintains functional residual lung capacity

• Helps reduce the baby’s breathing effort

• Minimizes the need for invasive mechanical ventilation

• Delivers better humidified gas to the baby

• Significantly reduces the incidence of Chronic Lung Disease (CLD)

• Improves physiological lung indicators such as height and weight

• CPAP pressure bar allows easy setting of pressure from 3 to 250 px water column

• Automatic water level adjustment mechanism maintains constant CPAP pressure

• Removable water tank ensures uninterrupted CPAP operation

• Ventilation Mode: CPAP (Bubble CPAP) mode

• Scope of Application: Suitable for spontaneous breathing support in newborns using continuous positive pressure ventilation

• Flow Regulation (LPM): 0 – 10 LPM (varies with different air-oxygen blenders)

• Oxygen Concentration (O₂%): 21% – 100%

• CPAP Pressure: 300 Pa – 1000 Pa (3 cm H₂O – 10 cm H₂O)

• Pressure Warning: Sound alarm (pneumatic alarm)

• Indicator Light: Lights up when the device is in operation

• Working Noise: Not more than 55 dB(A)

• Gas Input: Medical oxygen at 0.3 MPa – 0.4 MPa

• Power Supply: AC 220V ± 22V, 50Hz ± 1Hz
