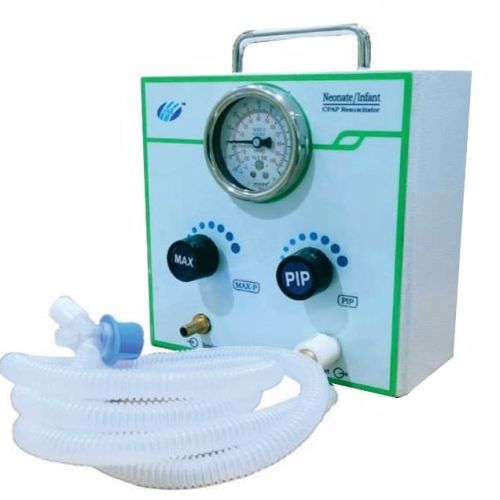

RESP-23 Infant Resuscitator

The Infant Resuscitator is primarily used in the delivery room, baby wards, and NICU, and is suitable for infants with a maximum weight of up to 10 kg.

• Mainly used in:

  • Delivery rooms

  • Baby wards

  • NICU

• Built-in differential pressure alarm system

  • When triggered, the safety valve starts automatically and continues supplying mixed gas to ensure patient safety

• Oxygen concentration adjustable from 21% to 100%

• Flow adjustment range: 5 LPM – 15 LPM

• MAX-P and PIP are:

  • Safe

  • Controlled

  • Accurate

• PEEP remains constant and precise

• Simple operation with flexible application

• Output pressure remains unaffected by:

  • Operator’s experience

  • Training level

  • Attention

  • Fatigue

• Pressure Gauge: –2 to 10 kPa (–20 to 100 cm H₂O)

• MAX-P: @0–15 LPM ≤ 6 kPa (60 cm H₂O)

• PIP: @5–15 LPM 0.2 – 5.7 kPa (2 – 57 cm H₂O)

• PEEP: @5–15 LPM 0.03 – 2.3 kPa (0.3 – 23 cm H₂O)
