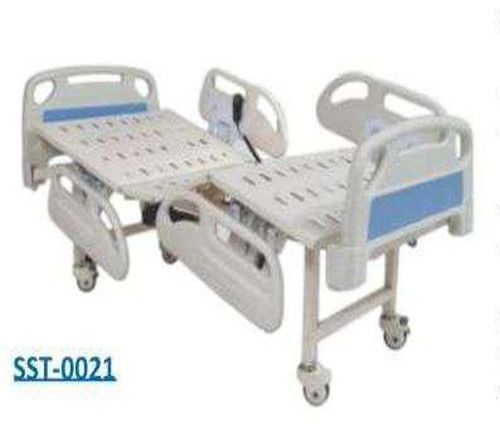

Hospital Bads

• Advanced linear actuator system (6 pcs motor, 1 pc control box, 1 pc handset, 1 pc nurse control system (ACP))

• Extra-long, 4-piece underside Occidental-style side rails with inclination degree indicators

• Heavy-duty ABS head and foot panel with locking and buffer

• Four-section operating framework made up of M.S. tubes

• Bed mounted on 6" central locking ABS castors – durable and quiet

• 5S telescopic I.V. rod with 4 locations

• Holder for urine bag

• Sitting position adjustable table

• Leg section expandable

• Finish: Pre-treated & epoxy powder coated

• Overall approximate size: 1970–2120(L) × 500(W) × 460–740(H) mm

• C4 section mattress

• LED lamp usable as reading lamp or under-bed lamp

• Hi-Low with locking function or handset

• Backrest elevation with locking function or handset

• Knee rest elevation with locking function or handset

• Trendelenburg / Reverse Trendelenburg with locking function or handset

• One-button electric CPR position and manual CPR function for emergency cases

The Deluxe O.T. Table is suitable for a wide range of surgical procedures, including general surgery, neurology, urology, gynecology, laparoscopy, and more.
The base and column are made of high-quality medical-grade stainless steel (Grade 304), offering a non-reflective surface that is antibacterial and easy to clean.

It features multiple positions for advanced surgical flexibility:

• Height adjustment

• Lateral tilts

• Trendelenburg and Reverse Trendelenburg

• Flex-Reflex position

• Chair position

• Kidney bridge position

• Length of Table: 1900 mm

• Width of Table Top: Minimum 750 mm

• Minimum Height (without mattress): —

• Maximum Height (without mattress): 1000 mm

• Trendelenburg: 25°

• Reverse Trendelenburg: +20°

• Lateral Tilt: +60°

• Back Section: +60°

• Head Section: 90°

• Leg Section: —

• Floor Locking System: Manual

• Precision-made hydraulic system with single lever action

• Hydraulic lift controlled by foot pedal

• Stainless steel fittings

• Detachable head and leg sections

• Built-in kidney bridge and large perineal cut-out for drainage

• Approx. dimensions: 2100 mm (L) × 1046 mm (W)

• Height adjustment (without mattress): 640 mm to 910 mm

• Three-section laminated top with perineal "U" notch

• Backrest, height, Trendelenburg, and reverse Trendelenburg adjustments operated electrically via actuators with a user-friendly handset

• Leg section can be telescoped under the backrest section for lithotomic positions

• Removable polymer head and foot boards

• Pair of polymer railings

• Middle and leg section tops are removable for cleaning

• Complete with:

  • Stainless steel tray

  • Stainless steel telescopic IV pole

  • Stainless steel hand grips

  • Padded lithotomy crutches (pair)

  • Rubber buffers

• PU foam mattress covered with rexine

• Four heavy-duty castors (150 mm dia) with central and directional locking system

• Battery backup with built-in charger

• Finish: Pretreated and powder-coated

• Certification: CE Certified

Also available in Hydraulic Height Adjustment

• ● Two-piece individual detachable collapsible side rails

• ● ABS molded head and foot panel

• ● Framework made up of M.S. tubes

• ● 4-section top made of oval perforated CRCA M.S. sheet

• ● Bed mounted on 4" castors, 2 with brakes

• ● Four I.V. rod locations

• ● Finish: Pre-treated & epoxy powder coated

• ● Overall approximate size: 2000(L) × 900(W) × 600(H) mm

• ● Backrest elevation

• ● Knee rest elevation

• ● 4-section mattress

• ● S.S. telescopic I.V. rod

• ● Four-piece individual side rails, ABS molded

• ● S.S. head & foot panels

• ● Advanced linear actuator system (2 pcs motor, 1 pc control box, 1 pc handset)

• ● Four-piece individual side rails, ABS moulded

• ● ABS moulded head and foot panel with locking and corner buffer

• ● Framework made up of M.S. tubes

• ● 4-section top made of oval perforated CRCA M.S. sheet

• ● Bed mounted on 4" castors, 2 with brakes

• ● Finish: Pre-treated & epoxy powder coated

• ● Overall approximate size: 2000(L) × 900(W) × 600(H) mm

• ● Backrest elevation

• ● Knee rest elevation

• ● C4 section mattress

• ● S.S. telescopic I.V. rod with 4 locations

• ● 2-piece individual detachable collapsible side rails

• Four-piece individual side rails, ABS molded

• Heavy ABS head and foot panel with locking

• 4-section top made up of perforated CRCA M.S. sheet

• Framework made up of M.S. tubes

• Bed mounted on 5" ABS castors, 2 with brakes

• Holder for urine bag

• Sitting position adjustable table

• Finish: Pre-treated & epoxy powder coated

• Overall approximate size: 2090(L) × 500(W) × 580–750(H) mm

• Hi-Low

• Backrest elevation

• Knee rest elevation

• Trendelenburg / Reverse Trendelenburg

• C4 section mattress

• 5S telescopic I.V. rod with 4 locations

• Stainless steel / mild steel railing

• Stainless steel head & foot bows

• Two-piece individual detachable side rails

• Collapsible side railing

• ABS head and foot panel

• 4-section top made of oval perforated CRCA M.S. sheet

• Framework made of M.S. tubes

• Bed mounted on 5" castors, 2 with brakes

• Holder for urine bag

• Finish: Pre-treated & epoxy powder coated

• Overall approximate size: 2000(L) × 900(W) × 600(H) mm

With foldable handle:

• Backrest elevation

• Knee rest elevation

• Trendelenburg / Reverse Trendelenburg

• C4 section mattress

• S.S. telescopic I.V. rod with 4 locations

• Stainless steel head & foot bows
