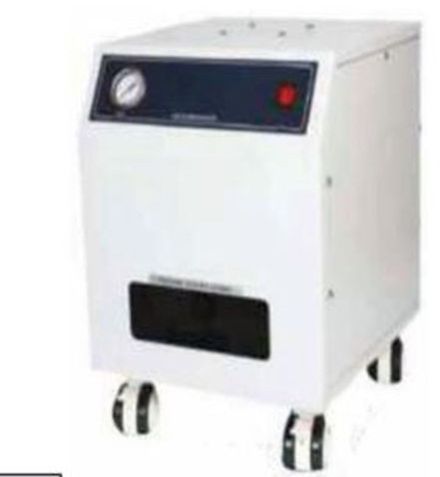

Tia 3000 Medical Air Compressor

Product Description Medical Air Compressor

• Delivers dry, clean medical-grade compressed air

• Offers an optional cost-performance ratio

• Quiet performance makes it ideal for use in ICU / NICU environments

• Can serve as:

  • A primary air source

  • An automatic backup to the hospital's air pipeline system

  • Support for medical ventilators and neonatal bubble CPAP units

Product Features

• High flow capabilities for greater versatility

• Oil-free compressor motor with thermal cutout

• Automatic water removal system

• Large locking castors for easy transportation

• Compatible with any ventilator

• Simple and economical maintenance

• Provides consistent performance under all conditions

• Low power consumption

Technical Specifications

• Nominal Voltage and Frequency: 220 VAC ± 10%, 50/60 Hz

• Compressor Efficiency: 50 L/min @ 3.5 bar*

• Air Tank Capacity: 2 Liters

• Air Filtration: 5 µm

• Dew Point Depression at 3 bar, 20°C: 5°C below ambient temperature

• Outlet Connection: DISS 1160-A (3/4″ – 16 UNF)

• Mode of Operation: Continuous

• Automatic Backup to Central Pipeline: On request

• Noise Level: ≤ 49 dB(A)

• Dimensions (L × B × H): 43.7 × 38.5 × 44 cm

• Weight: Approx. 45 kg

Optional Accessories

• Ventilator Stand

• Additional Alarms: High Temperature, Low Pressure

• Circuit Support Arm
